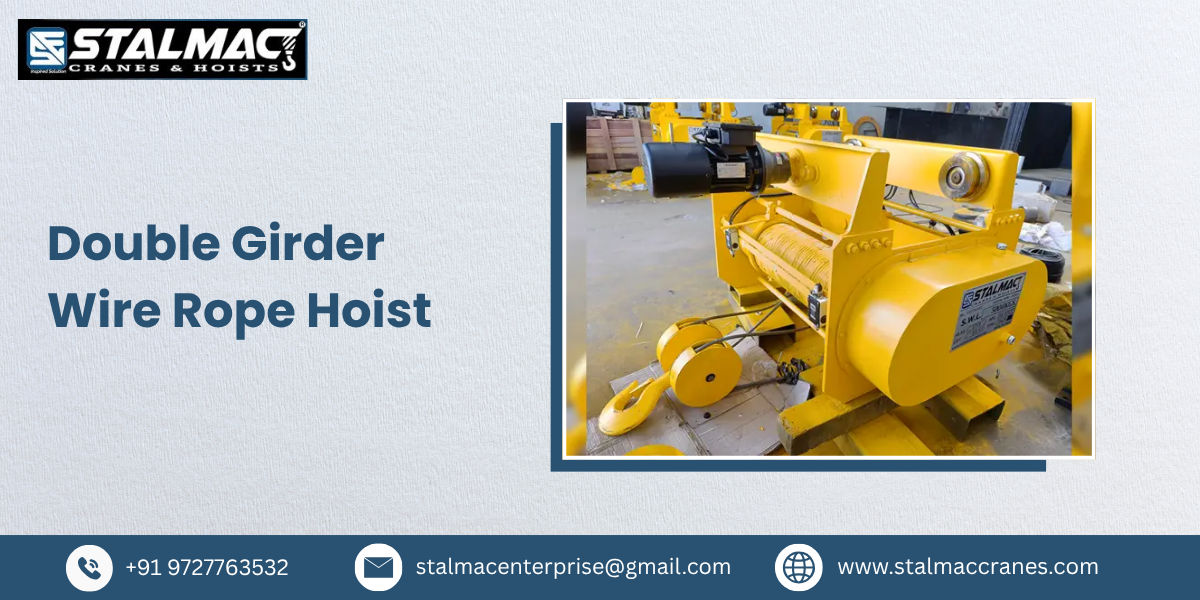

Double Girder Wire Rope Hoist Manufacturer in India – Stalmac Enterprise
A Double Girder Wire Rope Hoist is a heavy-duty electric lifting system designed for applications where reliable vertical lifting and controlled horizontal load movement are required. It is commonly integrated with double girder overhead cranes and other industrial lifting systems for handling heavy machinery, fabricated structures, steel products, production equipment and other industrial loads.
Stalmac Enterprise is a Double Girder Wire Rope Hoist Manufacturer and Double Girder Wire Rope Hoist Supplier in India, providing industrial lifting solutions based on load capacity, lifting height, operating duty, crane configuration and application requirements.
A wire rope hoist uses a motor-driven drum and wire rope arrangement to raise and lower loads. When installed on a suitable double girder crane system, it can provide efficient load handling across a broad working area.
What Is a Double Girder Wire Rope Hoist?
A Double Girder Wire Rope Hoist is an electrically operated lifting mechanism designed to work with a double girder crane or suitable overhead lifting structure.
The hoist uses a wire rope wound around a drum to raise and lower the load. Depending on the design, the hoist and trolley assembly can travel along the crane bridge, allowing the suspended load to be positioned horizontally as well as vertically.
A typical Wire Rope Hoist system consists of:
- Electric lifting motor
- Wire rope drum
- Wire rope
- Gearbox
- Brake system
- Rope guide
- Hook block
- Trolley mechanism
- Limit switches
- Electrical control system
- Pendant or remote control
- Load-handling accessories
The actual configuration depends on the required capacity, lifting height, duty classification and crane application.
How Does a Wire Rope Hoist Work?
A Wire Rope Hoist converts electrical power into controlled lifting motion through an electric motor, gearbox, drum and wire rope mechanism.
The basic operating sequence is:
The electric motor receives the lifting command.
The motor drives the hoisting gearbox.
The gearbox rotates the rope drum.
The wire rope winds onto or unwinds from the drum.
The hook block moves upward or downward.
The brake system controls the stopping and holding of the load.
The trolley can move the hoist horizontally when integrated with the crane bridge.
This arrangement provides controlled lifting and lowering of industrial loads.
Double Girder Wire Rope Hoist Design
The design of a Double Girder Wire Rope Hoist should be selected according to the actual lifting application.
Important design considerations include:
- Maximum lifting capacity
- Required lifting height
- Crane span
- Working duty
- Lifting frequency
- Hoist travelling requirements
- Available headroom
- Load characteristics
- Operating environment
- Power supply
- Control arrangement
- Installation conditions
For crane-mounted applications, the hoist and trolley arrangement should be compatible with the double girder crane structure and required load-handling movements.
Key Features of Double Girder Wire Rope Hoist
Depending on the configuration, a Double Girder Wire Rope Hoist can provide:
- Electric lifting operation
- Wire rope lifting mechanism
- Heavy-duty load handling
- Controlled lifting and lowering
- Motor-driven hoisting
- Gearbox-driven operation
- Mechanical braking
- Hook block arrangement
- Limit protection
- Trolley travel
- Pendant or remote control
- Application-specific lifting speeds
- Customized lifting height
- Industrial-duty construction
- Crane-specific mounting arrangements
The final features should be selected according to the application and manufacturer's technical design.
Main Components of Double Girder Wire Rope Hoist
Hoisting Motor
The electric motor provides the power required to lift and lower the load.
Gearbox
The gearbox transfers and reduces motor speed to generate the required lifting torque.
Rope Drum
The drum stores the wire rope as it winds during lifting and releases it during lowering.
Wire Rope
The wire rope transfers the lifting force between the hoisting mechanism and the hook block.
Hook Block
The hook block connects the hoist to the load and can be configured according to the lifting requirement.
Brake
The brake system helps stop and hold the lifting mechanism in a controlled position.
Rope Guide
A rope guide helps maintain the proper positioning of the wire rope on the drum.
Trolley
The trolley allows the hoist to travel horizontally across the crane bridge where the hoist is crane-mounted.
Electrical Controls
The control system coordinates hoisting and travelling operations.
Applications of Double Girder Wire Rope Hoist
A Double Girder Wire Rope Hoist can be used across many industrial sectors where heavy loads need to be lifted and positioned.
Steel Industries
Used for handling steel products, machinery, structural components and production materials.
Fabrication Plants
Suitable for moving fabricated structures, steel assemblies, plates and heavy components.
Engineering Industries
Can assist with machinery handling, equipment assembly and maintenance activities.
Manufacturing Plants
Used for moving production equipment, raw materials, components and finished products.
Foundries
Can be considered for heavy material and equipment handling where the hoist capacity and duty are appropriate.
Power Plants
Can support equipment maintenance, installation and material-handling activities.
Automobile Industries
Used for handling dies, machinery, components and production equipment.
Heavy Engineering Plants
Suitable for applications requiring controlled lifting of large and heavy industrial components.
Warehouses
Can support heavy material movement when integrated with a suitable overhead crane system.
Advantages of Double Girder Wire Rope Hoist
Heavy Load Handling
Wire rope hoists can be configured for industrial lifting requirements across a wide range of capacities.
Controlled Lifting
Electric motor and braking systems provide controlled raising and lowering of loads.
Suitable for Crane Integration
The hoist can be integrated with double girder overhead crane systems for three-directional material movement.
Efficient Material Handling
Mechanized lifting reduces manual handling and improves material movement efficiency.
High Lifting Height Options
Wire rope mechanisms can be configured for applications requiring significant hook travel.
Industrial Applications
The design can be adapted to demanding manufacturing, fabrication and engineering environments.
Double Girder Wire Rope Hoist Technical Specifications
The exact specifications should be finalized according to the customer's application.
| Parameter | Project Requirement |
|---|---|
| Hoist Type | Double Girder Wire Rope Hoist |
| Lifting Capacity | As per application |
| Lifting Height | As required |
| Hoist Speed | As required |
| Trolley Speed | As required |
| Working Duty | According to operating cycle |
| Rope Type | Application-specific |
| Hook Block | As required |
| Control | Pendant / Remote / Other |
| Power Supply | As per project |
| Crane Compatibility | Double Girder / Suitable Crane |
| Installation | Indoor / Outdoor as applicable |
| Customization | Available according to requirement |
Actual technical specifications should be confirmed by Stalmac Enterprise based on the specific project.
Double Girder Wire Rope Hoist vs Electric Chain Hoist
Both wire rope hoists and chain hoists are electric lifting devices, but their construction and typical applications differ.
A wire rope hoist uses a drum and wire rope mechanism, while an electric chain hoist uses a load chain. Wire rope hoists are commonly considered for heavier industrial lifting applications and greater lifting heights, while chain hoists can be suitable for various lighter or more compact lifting requirements.
The appropriate choice depends on:
- Load capacity
- Lifting height
- Working duty
- Operating frequency
- Required lifting speed
- Installation arrangement
- Available headroom
- Application requirements
How to Select the Best Double Girder Wire Rope Hoist?
Choosing the Best Double Girder Wire Rope Hoist requires evaluating the complete lifting application.
1. Determine Load Capacity
Identify the maximum load that the hoist needs to lift.
2. Determine Lifting Height
Establish the required hook height and total vertical travel.
3. Evaluate Working Duty
Consider operating hours, lifting frequency and the expected number of cycles.
4. Check Crane Configuration
The hoist trolley should be compatible with the double girder crane bridge and available installation space.
5. Consider Lifting Speed
Select lifting speeds according to the production and material-handling requirements.
6. Evaluate Headroom
Available building height and required hook position can influence the hoist arrangement.
7. Consider Load Characteristics
Load dimensions, weight distribution and lifting accessories should be evaluated.
8. Select the Control Method
Pendant, remote or other control arrangements can be considered based on the application.
Double Girder Wire Rope Hoist Price
The Double Girder Wire Rope Hoist Price depends on the technical specifications and application requirements.
Important factors affecting the price include:
- Lifting capacity
- Lifting height
- Hoist speed
- Working duty
- Motor specification
- Gearbox
- Wire rope arrangement
- Hook block
- Trolley system
- Electrical controls
- Braking system
- Installation requirements
- Customization
Therefore, there is no universal price for every Double Girder Wire Rope Hoist.
For an accurate quotation, customers should provide complete lifting requirements to the manufacturer.
Double Girder Wire Rope Hoist for Sale
If you are searching for a Double Girder Wire Rope Hoist for Sale, evaluate the equipment according to your actual application.
Before purchasing, consider:
- Maximum lifting load
- Required lifting height
- Working duty
- Required lifting speed
- Crane span
- Trolley arrangement
- Available headroom
- Power supply
- Control system
- Installation requirements
- Maintenance support
Choosing equipment based only on price may result in an unsuitable configuration. Technical compatibility should be evaluated first.
Double Girder Wire Rope Hoist Supplier in India
As a Double Girder Wire Rope Hoist Supplier, Stalmac Enterprise can support customers with project-specific requirements.
Our solutions can be considered for:
- Manufacturing plants
- Steel industries
- Engineering plants
- Fabrication workshops
- Heavy machinery industries
- Foundries
- Power plants
- Automobile industries
- Warehouses
- Maintenance facilities
Customers can provide their lifting requirements for technical evaluation and quotation.
Double Girder Wire Rope Hoist Exporter
Stalmac Enterprise can also support customers looking for a Double Girder Wire Rope Hoist Exporter from India.
For export requirements, specifications should be finalized according to the destination country's electrical requirements, operating conditions, installation environment and applicable regulations.
International customers can provide their complete project specifications for evaluation.
Double Girder Wire Rope Hoist in India
Industrial customers searching for a Double Girder Wire Rope Hoist in India can approach Stalmac Enterprise for application-specific lifting requirements.
The selection process can consider:
- Load capacity
- Lifting height
- Working duty
- Hoist speed
- Crane span
- Trolley arrangement
- Installation conditions
- Control requirements
This application-focused approach helps identify an appropriate wire rope hoist configuration.
Why Choose Stalmac Enterprise?
Selecting a Top Double Girder Wire Rope Hoist supplier should involve evaluating technical capability, application knowledge, product configuration and customer support.
Stalmac Enterprise focuses on:
Industrial Lifting Solutions
Industrial lifting solutions for diverse material-handling applications.
Application-Specific Engineering
Engineering based on actual lifting and crane requirements.
Customized Configurations
Configurations developed according to customer requirements.
Ahmedabad-Based Manufacturing Facilities
Industrial manufacturing facilities based in Ahmedabad, Gujarat.
Technical Consultation
Technical consultation for suitable lifting equipment selection.
Customer-Specific Requirements
Solutions developed around specific customer project requirements.
Industrial Material-Handling Applications
Equipment suitable for industrial material-handling applications.
Export Project Support
Support for international customers and export project requirements.
Frequently Asked Questions About Double Girder Wire Rope Hoist
1. What is a Double Girder Wire Rope Hoist?
A Double Girder Wire Rope Hoist is an electric lifting mechanism using a wire rope and drum arrangement to lift and lower industrial loads. It is commonly integrated with double girder overhead crane systems.
2. What is a Wire Rope Hoist used for?
A Wire Rope Hoist is used for lifting and lowering heavy industrial loads. When mounted on a suitable crane trolley, it can also provide horizontal load positioning.
3. What factors affect Double Girder Wire Rope Hoist Price?
Price depends on lifting capacity, lifting height, working duty, hoist speed, motor, gearbox, wire rope arrangement, hook block, trolley, controls and customization.
4. Can a Double Girder Wire Rope Hoist be customized?
Yes. The hoist configuration can be selected according to capacity, lifting height, working duty, speed, crane arrangement, control requirements and application.
5. How do I select the Best Double Girder Wire Rope Hoist?
Evaluate the required lifting capacity, lifting height, working duty, lifting speed, crane span, available headroom, trolley arrangement and operating environment before selecting the hoist.
6. Where are Double Girder Wire Rope Hoists used?
They are commonly considered for steel plants, fabrication facilities, manufacturing plants, engineering industries, foundries, power plants, automobile industries, warehouses and heavy engineering applications.
7. How can I request a quotation?
Provide Stalmac Enterprise with the required lifting capacity, lifting height, working duty, crane span, application and other available technical details for evaluation and quotation.
Get a Double Girder Wire Rope Hoist Quote from Stalmac Enterprise
Looking for a Double Girder Wire Rope Hoist Manufacturer, Supplier or Exporter in India?
Stalmac Enterprise provides industrial wire rope hoist solutions based on customer-specific lifting and crane requirements.
Company: Stalmac Enterprise
Unit 1: Plot No. 19, Shiv Prerna Ind. Park, Pirana, Ahmedabad – 382425, Gujarat, India.
Unit 2: Plot No. 37, Om Prerna Ind. Estate, Pirana, Ahmedabad – 382427, Gujarat, India.
Official Website: https://stalmaccranes.com/
For a quotation, provide your required lifting capacity, lifting height, working duty, crane span, hoist speed and application details so the appropriate Double Girder Wire Rope Hoist configuration can be evaluated.
